DDS Silent Scanner
95 % modulation coverage including LoRa/CSS — zero RF signature during search.
AI‑Enabled Anti‑Drone Suite
360° jamming · GNSS spoofing · mobile operations · full 6 GHz RF coverage
Solution Overview
The VIEWNEX XDR Suite is a next‑generation counter‑UAV platform deployable as mobile, portable, or fixed assets. It detects silent radios, tracks, jams, and even deceives hostile drones through GPS spoofing. With RF sensing, FPV video takeover, GIS integration and on‑board AI analytics, a single operator can automatically protect up to 40 km of airspace.

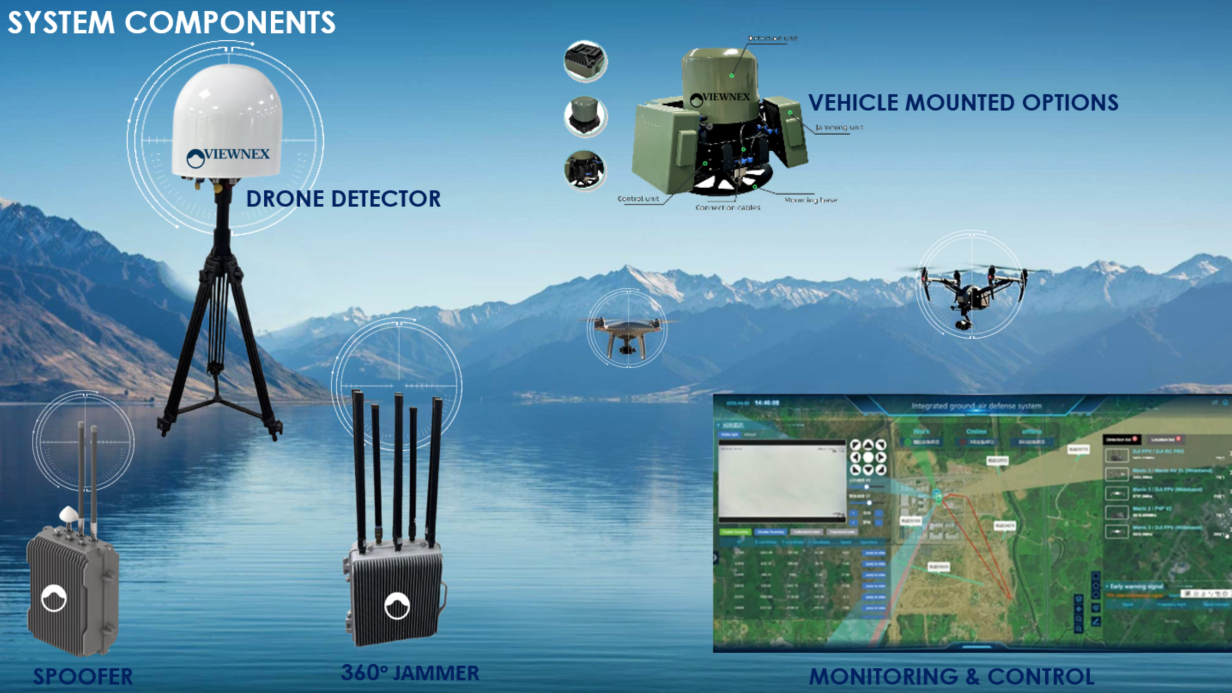

Layered Architecture
| Layer | Components | Key Functions |
|---|---|---|
| RF Sensor | DDS silent scanner 300 MHz – 6 GHz | Continuous spectrum watch, drone & pilot geolocation |
| Countermeasure | 360° jammer · FPV hack · GPS spoof | Forced landing, return‑to‑home, or denial of control |
| AI Engine | Multi‑sensor fusion | Trajectory, altitude, track history & false‑alarm filter |
| Command UI | GIS dashboard | Live map overlays & one‑click response |
| Mobility | Vehicle, backpack, carry‑case kits | Rapid deployment, 150 km h⁻¹ operation |
| ISR Archive | Automated log & video storage | Evidence export and post‑mission analysis |
ROI Comparison
| Method | Coverage | Auto Detect | Mobility | CAPEX | Risk |
|---|---|---|---|---|---|
| Fixed RF Posts | 1 – 2 km | No | None | High | High |
| Periodic Patrols | 3 – 5 km | Partial | Yes | Very High | Medium |
| XDR Suite | 1 – 40 km | Full | Full | Moderate | Low |
Key Technology Highlights
FPV Video Hack
Real‑time stream hijack, recording & pilot blind‑out.
GNSS Spoofer
L1/L2/L5 spoofing; land, circle or drift modes.
Multi‑Scenario Kits
MC 5/8 caravan, DV1 backpack, F‑series static.
Representative Models
| Model | Detect | Counter | Deployment |
|---|---|---|---|
| XDR‑MC 5/8 | 5 km | 3 km jamming | Vehicle roof (150 km h⁻¹) |
| XDR‑DV1 | 1 km | 1 km jam + FPV hack | 14 kg backpack |
| XDR‑F16 / F36 | 10 km | 5 km jam 50‑100 W | Static tower / mast |
| XDR‑SP/5 | — | GNSS spoof | Plug‑in module |
Target Sectors
Airports & Air‑Bases
Prevent runway incursions.
Energy & Utilities
Shield power, water & telecom nodes.
National Events
Overlay temporary safe airspace.
Urban & Prisons
Stop contraband drops.
Convoy Protection
Mobile defence while on the move.
Installation Requirements
- Vehicle: 12/24 V DC, roof rack, wind load ≤ 150 km h⁻¹
- Static: AC 220 V, 100‑150 W per jammer
- Environment: −40 °C to +60 °C, IP66 rating
Roadmap & Expansion
- Plug‑in facial & licence‑plate recognition
- UAV/UGV sensor fusion & fleet control
- Nation‑wide mesh with centralised C2
Models
XDR-MC 5/8
On-the-move caravan defence — 5 km detect · 3 km protect · 300 MHz-6 GHz
View specs
XDR-MC 2/12
Compact caravan defence — 1 – 2 km detect/protect, 40 kg all-in-one dome
View specs
XDR‑DV1
Portable FPV video detector — 1.5 km radius · 70 MHz – 6.2 GHz
View specs
XDR-F16
Fixed tower defense — ≥10 km detection · 3 km counter · 70 MHz-6 GHz scan
View specs
XDR-F36
High‑power 36‑band tower jammer — modular omni & directional shields
View specs
XDR-SP/5 Spoofer
GNSS deception module — ≥ 5 km lure · dual-band L1/L2/L5
View specs
