XDR-F36

XDR-F36

High‑power 36‑band tower jammer — modular omni & directional shields

36 RF Bands

Comprehensive coverage 300 MHz – 6 GHz.

50‑100 W Modules

Field‑swappable radio packs, 28 V DC.

Four‑Side Shield

Extra directional power for video‑link denial.

Network‑Ready

Ethernet control; integrate with XDR C2 for auto‑jam rules.

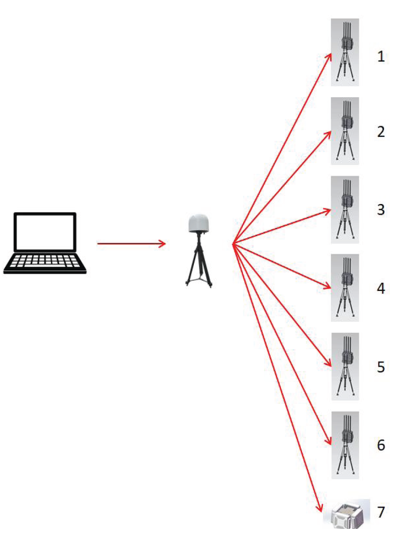

Frequency Modules

#	Frequency Range	Power
1	300–400 MHz · 800–900 MHz · 1260–1360 MHz · 3670–3800 MHz · 4700–4850 MHz · 4990–5150 MHz · 5850–6150 MHz	50 W (100 W*)
2	400–500 MHz · 900–1050 MHz · 1370–1480 MHz · 2400–2484 MHz · 2860–2960 MHz · 4500–4650 MHz · 5725–5850 MHz	50/100 W
3	500–600 MHz · 1540–1650 MHz · 2000–2150 MHz · 3310–3495 MHz · 4000–4200 MHz · 5550–5750 MHz	50 W
4	600–700 MHz · 1660–1780 MHz · 2200–2350 MHz · 3100–3250 MHz · 4250–4400 MHz · 4860–4980 MHz	50 W (100 W*)
5	700–800 MHz · 1780–1880 MHz · 2500–2650 MHz · 3500–3650 MHz · 5150–5350 MHz	50 W (100 W*)
6	1060–1250 MHz · 1890–1990 MHz · 2700–2850 MHz · 3850–3990 MHz · 4860–4980 MHz	50 W
7 (Shield)	800–900 MHz · 900–1050 MHz · 2400–2484 MHz · 5725–5850 MHz	50 W directional

*Optional high‑power modules (100 W).

System Dimensions & Environment

Omni Jammer Unit	≤ 31 kg · 520 × 465 × 275 mm
Directional Unit	≤ 5 kg · 320 × 320 × 110 mm
DF Scanner Head	≤ 15 kg · Ø400 × 370 mm
Total Tower	≤ 150 kg · Ø1000 × 2400 mm
Operating Temp	−40 °C – +60 °C · IP66
Supply	28 V DC per module (AC 220 V PSU)

Use Cases

Large‑scale energy & utility complexes
Correctional facilities for video‑link denial
Line‑of‑sight corridors (highways, pipelines)
